Our Models

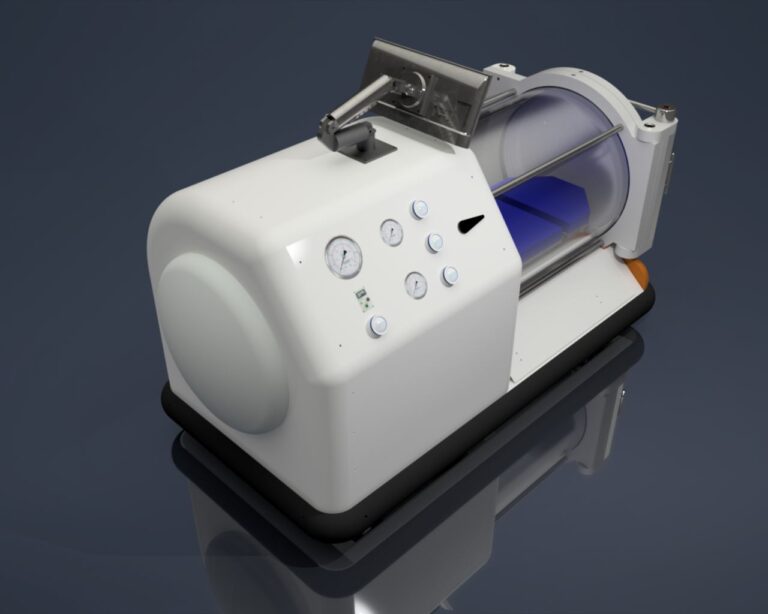

Sama M Series

Semi Panoramic

Our SAMA M Series cameras are elegant, robust, practical and highly reliable in design. They feature a view window that allows viewing only the patient’s torso.

This feature can be very useful when the patient prefers some privacy, especially in outpatient hyperbaric treatment centers.

It is made of high-strength steel and acrylic specially manufactured under hyperbaric standards and its control panel is analog, making this equipment highly reliable as well as ergonomic for the comfort of the patient and the operator.

29 Maximum Working Pressure – PSI

70 Maximum Oxygen Supply Pressure – PSI

850 Weight – KG

32 Acrylic Tube Thickness – mm

1319 External Height – mm

1000 Acrylic Tube Length

2400 External Length – mm

1200 External Width – mm

The M Series has three models according to the configuration of the controls, which can be:

Model M-1 Manual Controls – In this version, pressurization, ventilation and venting are managed and controlled 100% with manual valves and are operated by the personnel in charge of the hyperbaric center.
Model M-2 Basic Pneumatic Controls – In this version, pressurization, ventilation and venting are managed and controlled with pneumatic valves that operate automatically based on the definition of the target pressure, the pressurization speed and the desired ventilation ratio.
Model M-3 Advanced Pneumatic Controls – In addition to automatic pneumatic pressurization, ventilation and venting, this version includes a door lock, a supply cut-off when the door is detected open, indicators of the existence of pressure in the chamber and in the line, as well as an emergency venting valve that also operates automatically.

This chamber has an internal retractable stretcher with a height suitable for patient access, thus avoiding external stretchers and stairs that other models on the market require, which, in addition to being uncomfortable, consume additional space and are dangerous for many patients.

Its dimensions allow for easy transport and handling, excellent use of space in the barometric room and great comfort for the operator and the patient.

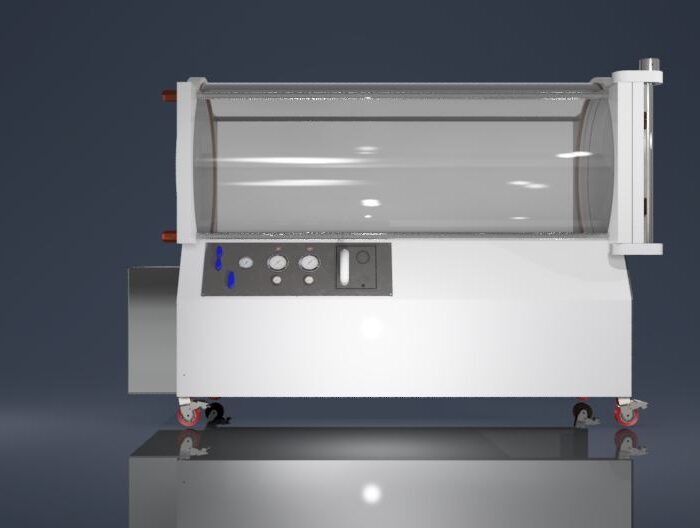

Sama N Series

Panoramic

Our SAMA N Series cameras are state of the art equipment that prioritizes therapists’ access to the best visualization of the patient’s conditions, in addition to providing the patient with a significant decrease in the feeling of confinement due to the large size of the acrylic viewer.

29 Maximum Working Pressure – PSI

70 Maximum Oxygen Supply – PSI

600 Weight – KG

32 as Thickness Acrylic Visor – mm

1319 mm Exterior Height

1200 mm External Width

The N Series has three models according to the configuration of the controls, which can be:

Model N-1 Manual Controls – In this version, pressurization, ventilation and venting are managed and controlled 100% with manual valves and are operated by the personnel in charge of the hyperbaric center.
Model N-2 Basic Pneumatic Controls – In this version, pressurization, ventilation and venting are managed and controlled with pneumatic valves that operate automatically based on the definition of the target pressure, the pressurization speed and the desired ventilation ratio.
Model N-3 Advanced Pneumatic Controls – In addition to automatic pneumatic pressurization, ventilation and venting, this version includes a door lock, a supply cut-off when the door is detected open, indicators of the existence of pressure in the chamber and in the line, as well as an emergency venting valve that also operates automatically.

This chamber can accommodate an internal retractable stretcher with a height suitable for outpatient access, thus avoiding external stretchers and stairs. In its version for clinics and hospitals, it can have a transfer stretcher as a means of access, with pneumatic lifting controls, integrated brakes and space designed to carry an oxygen bottle.

Its dimensions allow for easy transport and handling, excellent use of space in the barochamber and great comfort for the operator and the patient.

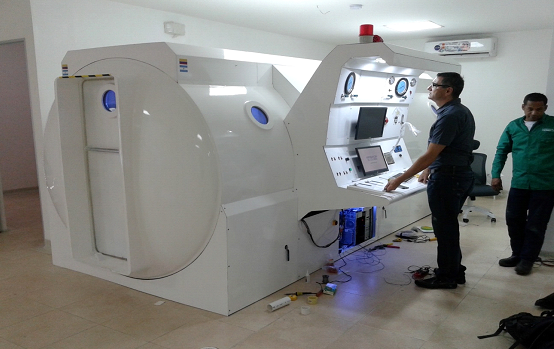

Sama MP Series

Multi-seater

Our MP series of chambers are designed according to the needs of the user. These can range from tandem (tender and patient) to groups as large as 12 people or more. Made of high-grade steel and high-quality components, they are extremely durable and reliable.

They have a comfortable entrance for entry, a front entrance and exit without interrupting the treatment and an entry lock for medications for administration during therapy. Its control panel is ergonomic for easy and comfortable access to all controls, pressure gauges and valves.

The pressure gauges and valves are 100% analogue, making this equipment highly reliable and robust in its operation.

This chamber has several acrylic viewers and external lighting that allows monitoring of the treatment. It is mounted on a structure that facilitates its location and movement.

100 Maximum Operating Pressure – PSI

140 Maximum Compressed Air Supply Pressure – PSI

70 Maximum Oxygen Supply – PSI

External Height required by the user

External length required by the user

External width required by the user

1000 External Length – mm

600 External Width – mm

Its dimensions must be defined according to the user’s requirements, to make the most of the space in the hyperbaric unit, in the clinic or in the medical center where it operates.

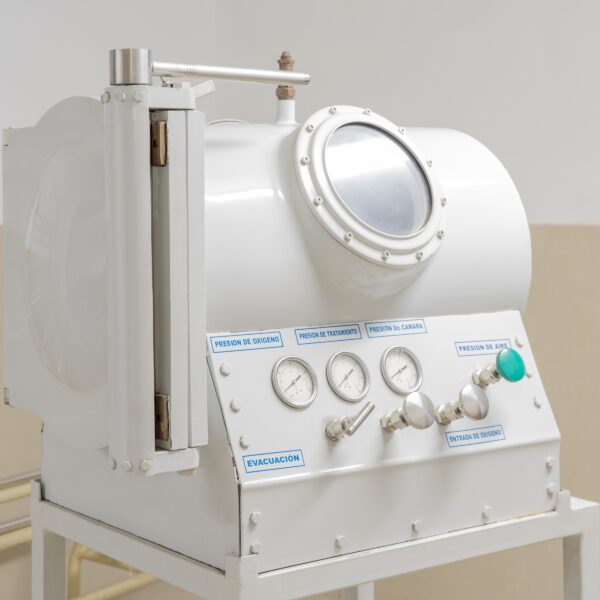

SAMA P Series

Pets

This is the model for small pets. It is manufactured with high resistance steel and acrylic. Its control panel and all commands, gauges and valves are 100% analog, making this equipment highly reliable and functional.

This chamber has an acrylic viewer that allows monitoring of the pet during treatment and is mounted on a cart with wheels that facilitates its location and displacement.

Its dimensions allow the use of space in the veterinary clinic, and therefore facilitates the location of the oxygen source in an appropriate place.

30 Maximum Operating Pressure – PSI

70 Maximum Oxygen Supply Pressure – PSI

200 Weight – KG

800 External Height – mm

1000 External Length – mm

600 Outside Width – mm
